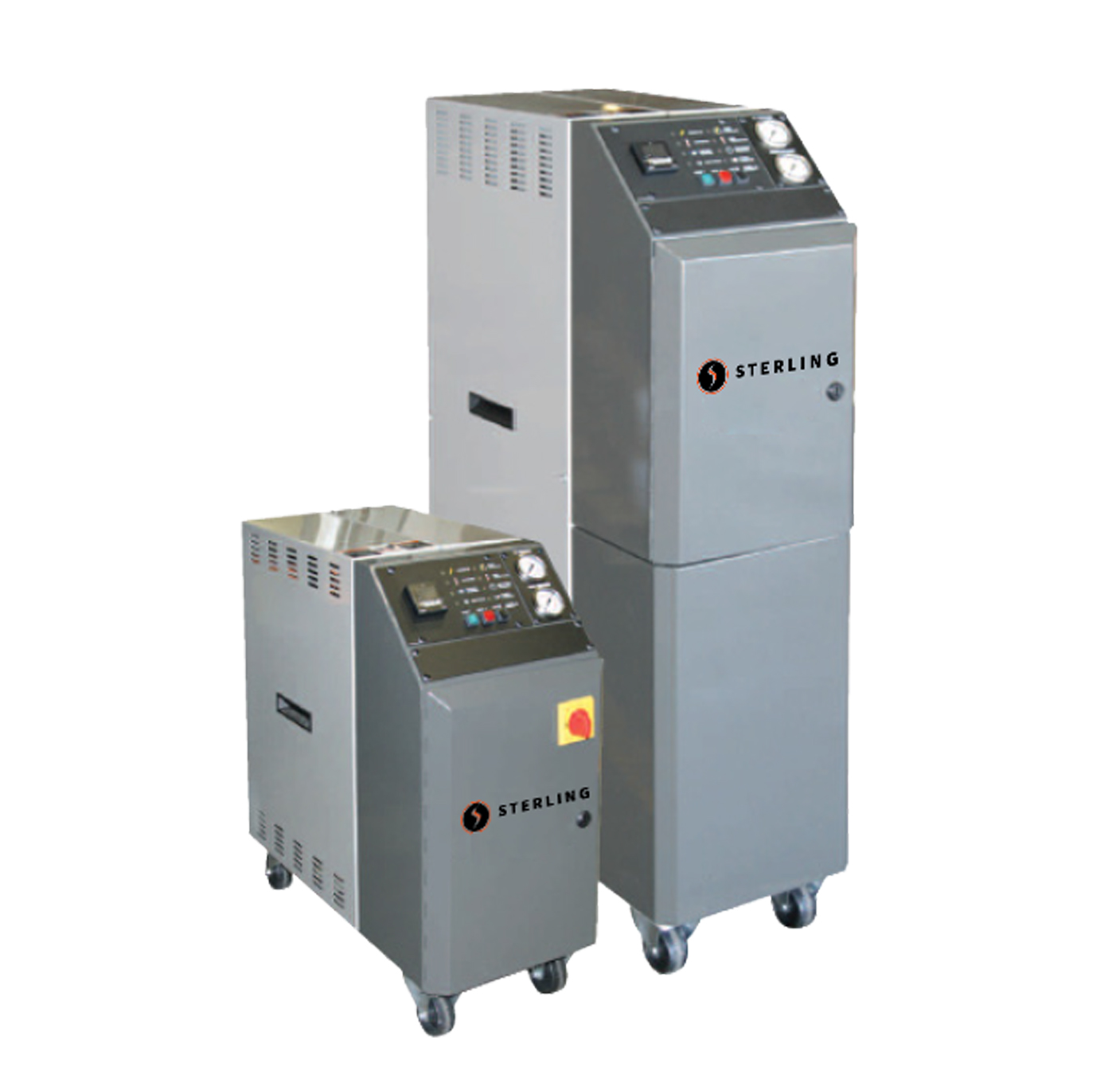

TCU Sterling Royal Series

Description

Royal Series Water Temperature Control Units provide highly accurate control for production applications requiring a continuous supply of temperature-controlled water.

Innovative design promotes turbulent water flow to maximize heat transfer performance. High flow pumps with 32°F to 250°F (0°C to 121°C) operating range. The cast-and-flange design reduces connection points by 40% while including high-efficiency pumps that offer higher flow rates at lower pressures.

These highly efficient products maintain temperatures to within 1°F of setpoint through the use of dual stage immersion heaters, using half or full heat based on the needs of the process.

Standard Features

1. Operating range 32°F to 250°F (0°C to 121°C)
2. Compact design with easy-access side panels for rapid maintenance
3. Independent high temperature safety thermostat to protect from heater overload
4. Integrated cooling solenoid valves for efficient unit cooling
5. Forward facing liquid filled to and Fro Process Pressure Gauges
6. Operator friendly PID temperature controller with Process and Set Point LED readouts and straightforward unit performance data
7. Adjustable low water pressure switch 16 psig (110kPa/1.1bar)
8. 0.75″ water supply connection 1.5″ process connections valve size matches drain size

Optional Features

1. Units offer 9kW, 12kW, 18kW, 24kW, 36 kW, and 48kW heater options
2. Maintained Start/Stop switch
3. General fault audio/visual alarm alert operators of unit issues
4. Quick cool switch for rapid unit cooling
5. Y-strainer to protect unit from high particulate fluid
6. 300°F operations includes silicon carbide/silicon carbide seal
